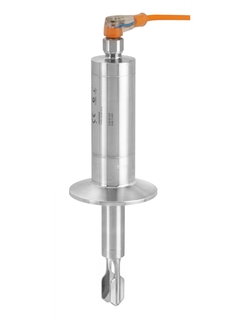

316L Vibronic Point Level Detection Liquiphant FTL33 FTL33-AA4S3BBWSJ

Name: 316L Vibronic Point Level Detection Liquiphant FTL33 FTL33AA4S3BBWSJ
Brand: Endress Hauser
Price: 1 USD

China 316L Vibronic Point Level Detection Liquiphant FTL33 FTL33-AA4S3BBWSJ wholesale

Brand Name : Endress Hauser

Model Number : FTL33-AA4S3BBWSJ

Place of Origin : DE

MOQ : 1pcs

Price : Negotiable

Payment Terms : T/T

Supply Ability : 5000pcs/month

Delivery Time : On request

Packaging Details : Original packing

Process temperature : -40 °C ... 150 °C

Process pressure / max. overpressure limit : Vacuum ... 40 bar

Min. density of medium : >0,7g/cm³

Measuring principle : Vibration Liquids

Main wetted parts : 316L

Communication : AC/DC, DC-PNP, IO-Link

Contact Now

Vibronic Point level detection Liquiphant FTL33 FTL33-AA4S3BBWSJ

Certificates / Approvals	CSA C/US, EAC
Safety approvals	Overfill protection WHG Leakage
Design approvals	EN 10204-3.1

316L Vibronic Point Level Detection Liquiphant FTL33 FTL33-AA4S3BBWSJ

Specs at a glance

Process temperature

-40 °C ... 150 °C
(-40 °F ... 302 °F)
Process pressure / max. overpressure limit

Vacuum ... 40 bar
(Vacuum ... 580 psi)
Min. density of medium

>0,7g/cm³
(>0,5g/cm³ optional)

Field of application

Liquiphant FTL33 is a point level switch for liquids. The FTL33 is especially designed for food & beverage applications where hygienic requirements are requested. The Liquiphant is used for overfill protection or pump dry-run protection. The IO-Link capability allows easy parameter setting.
Compact:
- Smallest vibronic sensor in the market
Safe:
- Continuous self-monitoring
- Reliable switching independent of media properties
Easy:
- No calibration
- Plug & play
-IO-Link connectivity

Point level switch in compact hygienic design with stainless steel housing for the food industry.

Process connections: Threads, hygienic process connections, M24 process adapter
Temperature: -40 to +150°C (-40 to +302°F)
Pressure: -1 to +40bar (-14.5 to +580psi)
Surface roughness: 0.76µm or 1.5µm
Overfill protection and leakage detection WHG, hygienic certificates, final inspection report

Benefits

Designed for hygienic applications especially in the food industry - hygienic process connections and approvals available. IO-Link reduces costs and complexity due to easy configuration of the devices via engineering tools
CIP and SIP cleanability ensured - up to protection class IP69k
Designed according to highest requirements to quality and environmental sustainability, the self-monitoring Liquiphant offers safe switching also in case of power supply loss
Independent of changing media properties an accurate switching point is offered
A real plug & play sensor is offered without any need for adjustment even with changing media. Measurement is unaffected by conductivity, build-up, turbulence, flows or air bubbles
No calibration is required, no specific know-how or tools (e.g. software) necessary
Robust design made of stainless steel (316L) assures highest durability - no mechanically moved parts, free of maintenance
