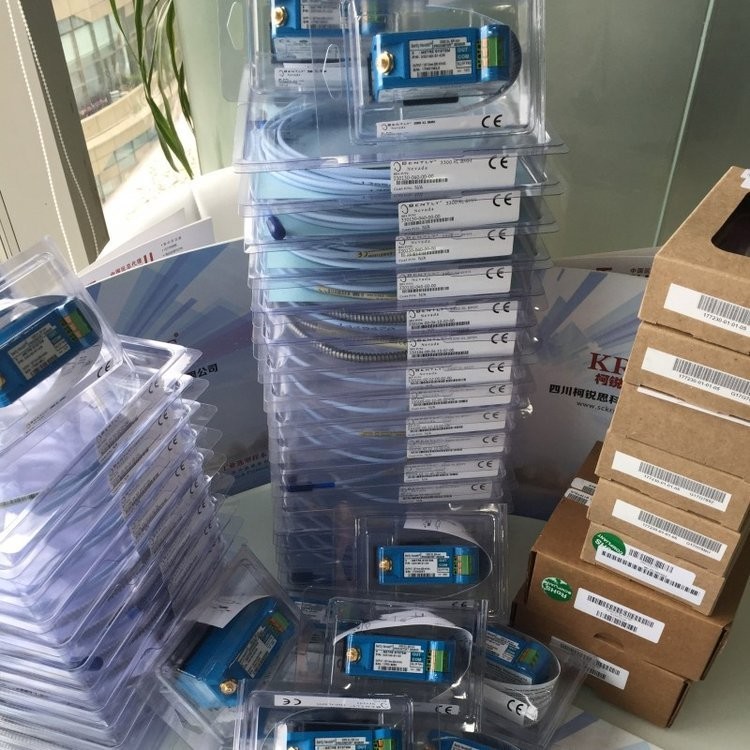

330103-06-15-10-12-05 Bentley NEVADA 3300 XL 8 mm probe in stock
The 3300 XL 8 mm Proximity Transducer
System consists of:
• One 3300 XL 8 mm probe,
• One 3300 XL extension cable1, and
• One 3300 XL Proximitor* Sensor2.
The system provides an output voltage that is
directly proportional to the distance between
the probe tip and the observed conductive
surface and can measure both static (position)
and dynamic (vibration) values. The system’s
primary applications are vibration and position
measurements on fluid-film bearing machines,
as well as Keyphasor* reference and speed
measurements3.
The 3300 XL 8 mm system delivers the most
advanced performance in our eddy current
proximity transducer systems. The standard
3300 XL 8 mm 5-meter system also fully
complies with the American Petroleum
Institute’s (API) 670 Standard (4th Edition) for
mechanical configuration, linear range,
accuracy, and temperature stability. All 3300
XL 8 mm proximity transducer systems provide
this level of performance and support
complete interchangeability of probes,
extension cables, and Proximitor sensors,
eliminating the need to match or bench
calibrate individual components.

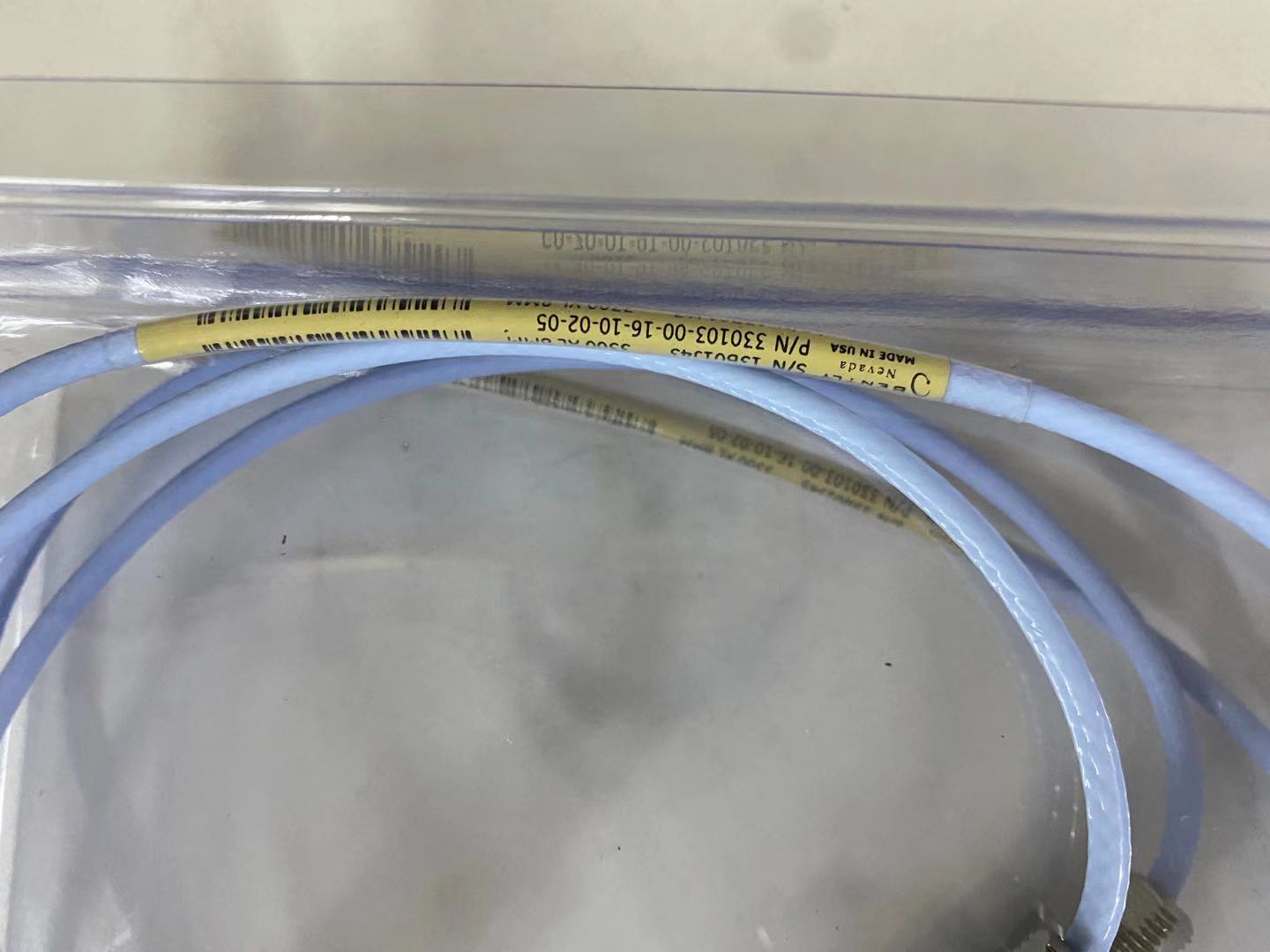

3300 XL 8 mm Proximity Probes, Metric:
330103 3300 XL 8 mm Probe, M10 x 1 thread,
without armor2
A: Unthreaded Length Option
Note: Unthreaded length must be at least 20 mm less
than the case length.
Order in increments of 10 mm.
Length configuration:
Maximum unthreaded length: 230
mm
Minimum unthreaded length: 0 mm
Example: 0 6 = 60 mm
B: Overall Case Length Option
Order in increments of 10 mm.
Metric thread configurations:
Maximum length: 250 mm
Minimum length: 20 mm
Example: 0 6 = 60 mm
C: Total Length Option
0 5 0.5 meter (1.6 feet)
1 0 1.0 meter (3.3 feet)
1 5 1.5 meters (4.9 feet)
2 0 2.0 meters (6.6 feet)
5 0 5.0 meters (16.4 feet)
9 0 9.0 meters (29.5 feet)
Note: 5-meter probes are designed for use with the 5
meter Proximitor sensor only.
D: Connector and Cable-Type Option
0 1 Miniature coaxial ClickLoc connector
with connector protector, standard
cable
0 2 Miniature coaxial ClickLoc
connector, standard cable
1 1 Miniature coaxial ClickLoc connector
with connector protector, FluidLoc
cable
1 2 Miniature coaxial ClickLoc
connector, FluidLoc cable
E: Agency Approval Option
0 0 Not required
0 5 CSA, ATEX, IECEx Approvals
