E+H Endress+Hauser Proline Promag 55S Electromagnetic Flow Meter 55S2H-ULJB1AC2AAAA

Brand Name : E+H

Model Number : 55S2H-ULJB1AC2AAAA

Certification : ce

Place of Origin : Germany

MOQ : 1pcs

Price : USD2100/PCS

Payment Terms : T/T

Delivery Time : 5-8works

Packaging Details : carton

Warranty : 1 Year

Origina : Germany

MODEL : 55S2H-ULJB1AC2AAAA

Power Supply : 24 VDC

Process temperature : -40°C...+240°C

Pressure : 0.15 psi...3600psi

Contact Now

E+H Endress+Hauser Proline Promag 55S Electromagnetic Flow Meter 55S2H-ULJB1AC2AAAA

Liner:U

Polyurethane

Process Connection:L

Cl.150, A105, flange ANSI B16.5

Electrodes:J

Tungsten carbide

Calibration:B

0.2%

Additional Test, certificate:1

w/o

Approval:A

Non-hazardous area

Housing:C

Wall Alu, IP67 NEMA4X

Cable, Remote Version:2

10m/30ft coil and signal cable

Cable Entry:A

Gland M20 (EEx d > thread M20)

Power Supply; Display:A

85-260VAC, WEA, 4-line + Touch control WEA= language DE+EN+FR+IT+ES+PT+NL

Adjustment; Software Feature:A

Factory setup; basic version

Output, Input:A

4-20mA HART + frequency

Details:

Assign line 1: Volume flow

Assign line 2: Totalizer 1

Assign line 3: Operation/syst.cond.

Assign totalizer 1: Volume flow balance

Unit totalizer 1: m3

Assign totalizer 2: Volume flow forward

Unit totalizer 2: m3

Assign totalizer 3: Volume flow reverse

Unit totalizer 3: m3

Assign current output: Volume flow

Current span: 4-20 mA HART NAMUR

Value 0/4 mA: 0 m3/h

Value 20 mA: 300.00000 m3/h

Measuring mode: Standard

Time constant: 3.00000 s

Failsafe mode current output: Min. current

Assign pulse output: Volume flow

Pulse value (per pulse): 0.05000 m3

Pulse width: 100.00000 ms

Output signal: Passive - positive

Failsafe mode pulse output: Fallback value

Net weight: 48.180 Kilogram

SPK: DAA

HS-Code: 90261021

Country of origin: FR

Country of dispatch: FR

E+H Endress+Hauser Proline Promag 55S Electromagnetic Flow Meter 55S2H-ULJB1AC2AAAA

Product Tags:

55S2H-ULJB1AC2AAAA Electromagnetic Flow Meter

Endress+Hauser Promag 55S Electromagnetic Flow Meter

E+H Promag 55S Electromagnetic Flow Meter

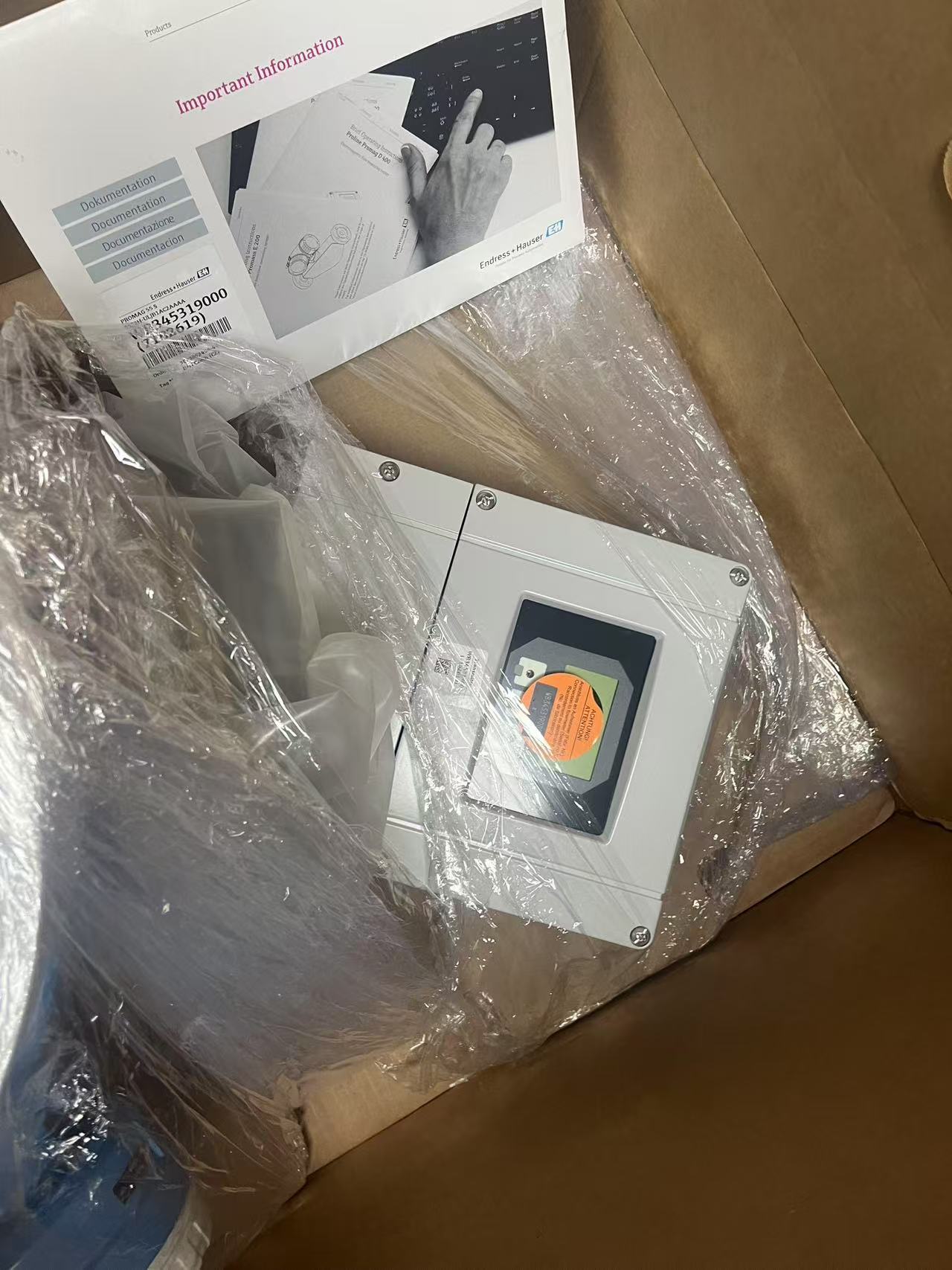

E+H Endress+Hauser Proline Promag 55S Electromagnetic Flow Meter 55S2H-ULJB1AC2AAAA Images
